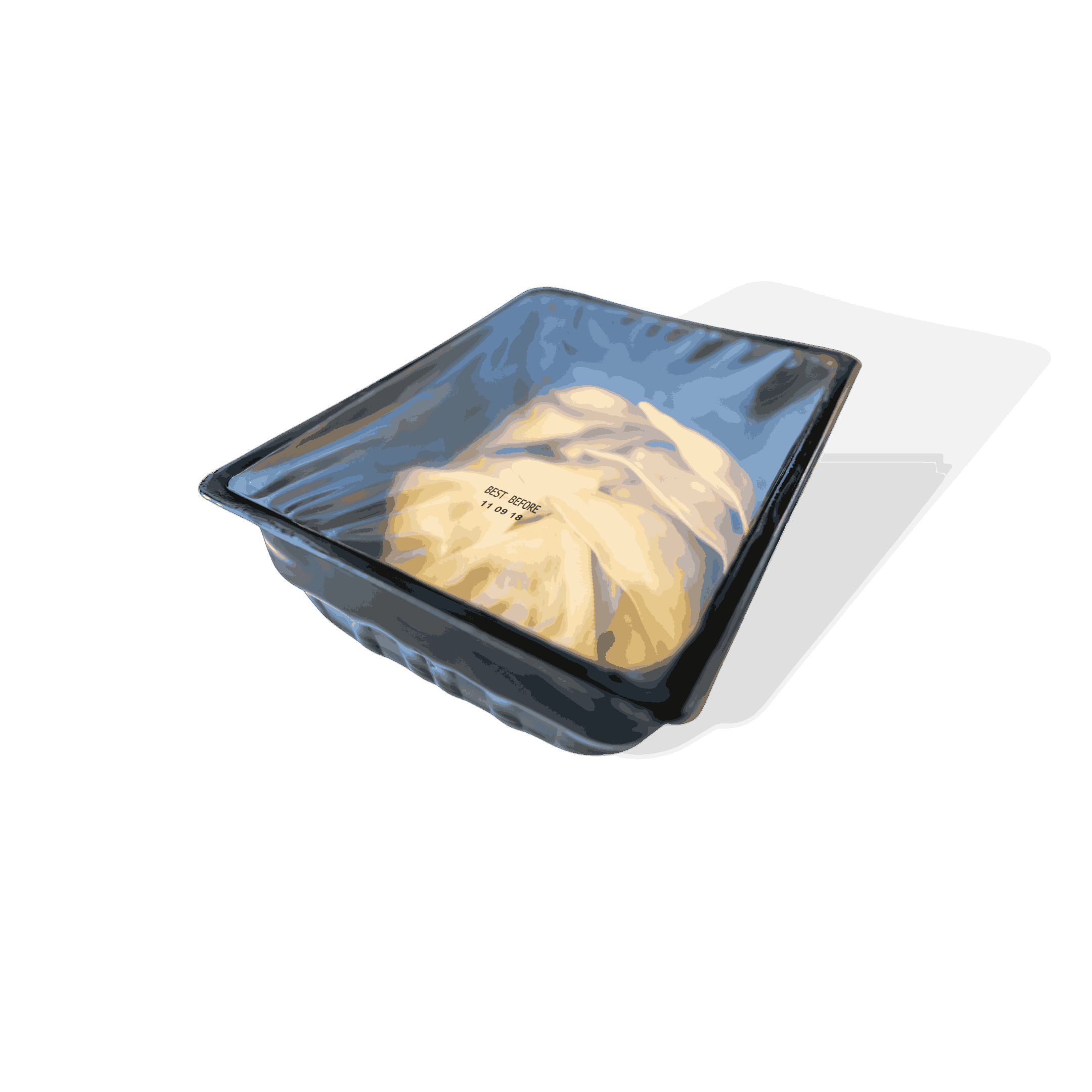

Untitled design (65)



Batch Coding Solutions for Food & Beverage Packaging

In high-speed food and beverage packaging environments where either secondary or primary packaging coding and marking is required, it is essential for you to have a batch coding solution that enables you to print virtually anywhere on your package, in any orientation, and onto a wide range of substrates.

Our range of food-grade printers offer easy integration onto your existing lines, the setup of codes is intuitive, and our team of expert engineers are on hand to have you ready to go in no time at all. Support for a full range of code formats including text, variable dates, and quality graphics and logos, maximises the coding options for contract packers who need to meet their customers’ stringent packaging printing requirements.

Not only do we provide the machines which enable you to print, but we also have decades of experience designing and manufacturing high-quality inks and consumables to keep you going indefinitely, with a wide range of inks suitable for any application.

Examples of food and beverage coding applications


Drinks bottles and cans

Dairy bottles and cartons

Retail Ready Packaging (RPP)


Meat Packaging


Ready Meals


Health Marks printed directly onto food such as egg, meat and cheese

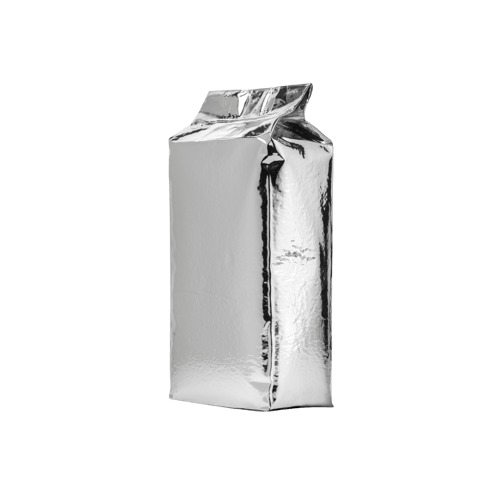

foil food packaging

Which Technology Do You Need?


Continuous Ink Je
t
 (CIJ) works well for a range of materials – from paper and card to plastic and packaging films. The use of a microscopic nozzle and an adjustable ultrasonic vibration mechanism makes the inkjet droplets in a CIJ system very small. This makes CIJ technology an excellent choice for printing high-resolution designs. Small droplets also mean that they dry practically as soon as they hit the printing surface, offering speed as well as quality.

With all the benefits of CIJ printing, it has mostly been used in industrial applications where time is money and quality are a priority. The expiration dates found in most food products are some of the most common examples of CIJ printing. Whether the food packaging is made of paper, plastic, or glass, CIJ printing can be relied on to print these codes and marks clearly and accurately.

dog food metal can with batch number and expiry date 1



07 08 2021



Thermal Ink Jet (TIJ) is a great option when coding for primary and secondary packaging and offers high quality and clean alternative to roller coders and valvejet systems. TIJ offers high speed and high resolution, and the technology works with a wide variety of substrates. The hundreds of nozzles within each print head mean that TIJ can apply alphanumeric text (true-type fonts), graphics, logos, QR codes, 2D data matrix codes and more.

While CIJ printers typically print in a dot pattern, TIJ is able to offer high resolution up to 600 x 600 dpi, able to offer results similar to those of a desktop inkjet printer. TIJ systems are modular so all components can be swapped out individually if necessary. There is no expensive umbilical – just a printhead cable that quickly disconnects. For smaller industrial outputs, TIJ is a great low-cost, low-maintenance option.

Our Solutions

N32FG

Our own N-SERIES Continuous Inkjet printer range is available in a variety of configurations. The N32FG is our Food Grade CIJ Printer, with similar specs as the standard N32 model, but specifically designed for printing with food-grade inks.

N-SERIES Food Grade industrial inkjet printers are compatible with FDA, EU and other compliant inks and are capable of printing directly onto food products, ideal for egg coding, fruit & vegetables or permeable food packaging. Complimented by a diverse range of Food Grade Inks, including self disinfecting ink formulations to enable food products to be printed directly with fast drying, edible red or blue ink.

Please get in touch with us today to find out more about our Food Grade printers.

Find Out More







N32FG-removebg-preview



We also supply a range of TIJ printers from trusted brands such as SoJet and HSA, with a wide choice of options to meet your needs - whether you require a compact solution or a powerful multi-printhead system with independent controls.

Our Range of TIJ Printers

Elfin-VI-1-removebg-preview

Find Your Printer

By answering a few simple questions we can identify the right solution for your requirements

Find My Printer
