Continuous Inkjet Printers





N Series Front Side Background



Often referred to as CIJ, these coders use a non-contact form for applying ink and our range can be used to print onto almost any surface.

Based on a winning, tried-and-tested design, the N32 CIJ printer is able to withstand some of the most harsh environments.

  • Features a large 10.4” colour touch screen display
  • Industrial stainless-steel enclosure
  • An automated ventilation system
  • A smart filter system
  • External fluid containers for easy access

VIEW THE N32 BROCHURE

CIJ Printers are designed to apply identification marks such as best before dates, traceability codes, logos and batch codes to almost any kind of material and are perfect for printing on curved and flat surfaces at high speed.

With exceptional reliability CIJ Printers are used in a wide range of industries including cosmetics, food and beverage, electronic components, automotive, personal care, pharmaceutical, health care, extrusion, cable & wire, building materials and many other industrial sectors.



The N-Series Range

N series n16plus coding machine N Series N25 Coding Machine N Series N32 Coding Printer N Series N32UV Coding Printer N Series N32M Coding Machine N Series N32FG Coding Machine N Series N32HS Coding Machine

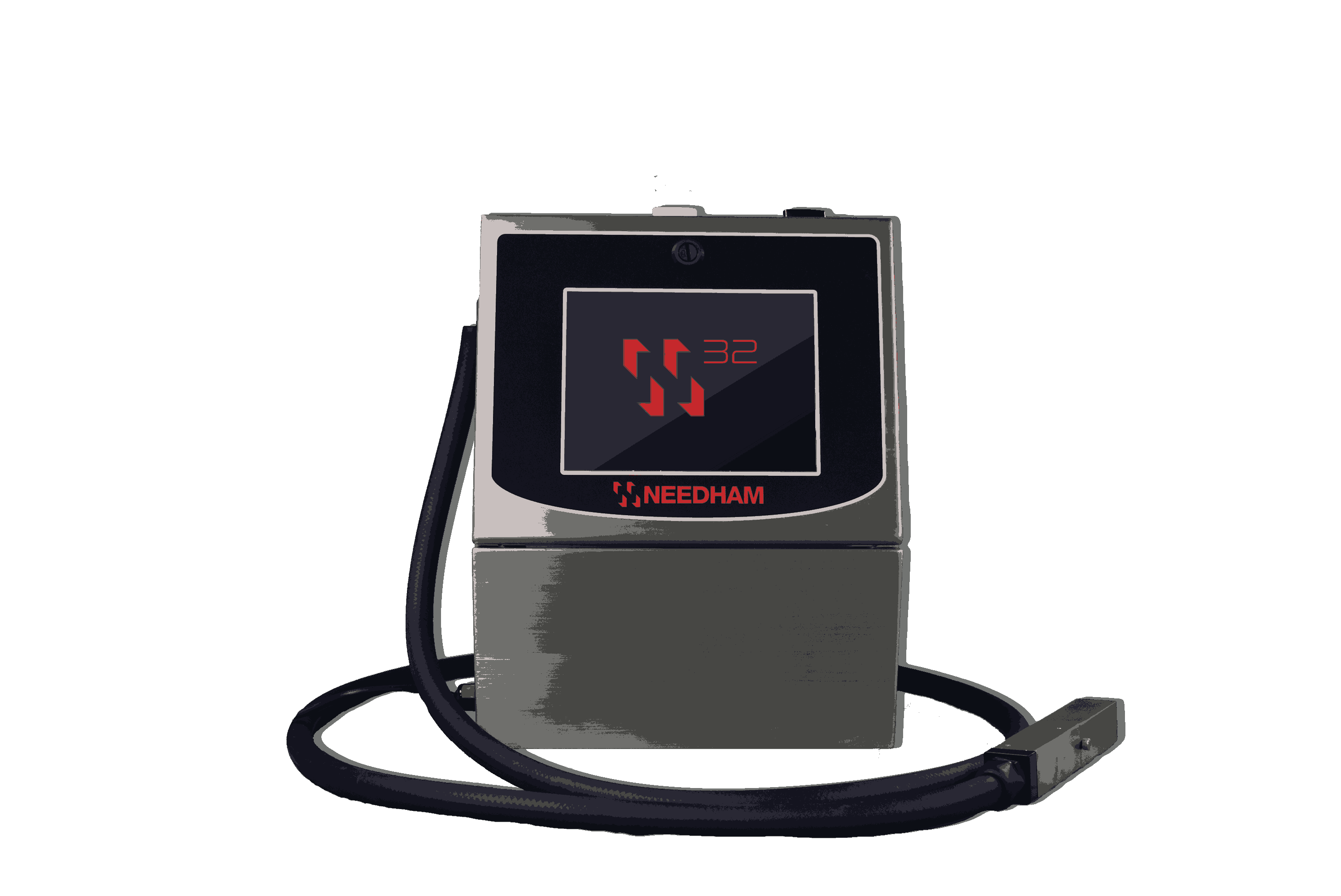

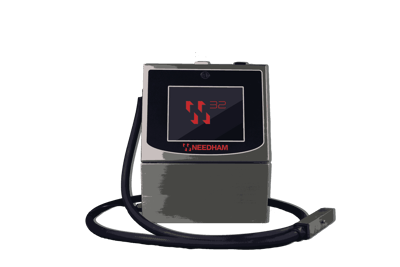

N32

Ideal for printing 1, 2, 3, 4 or 5 lines of text, barcodes or graphics 24 hours a day, 7 days a week. averaging 4,000 - 8,760 hour annual operation, with higher production line speeds.

  • Print text, barcodes and graphics over 1,2, 3, 4 or 5 lines.
  • Print height of 1.5mm – 19mm
  • Ink throw distances from .5" (12 mm) up to 2" (50 mm)
  • Line speeds of up to 1,500 ft/min (470 M/min).  - One-Line Print
  • Line speeds of up to 345 ft/min (108M/min) - Two Line Print
  • Line speeds of up to 173 ft/min (54M/min) - Three Line Print
  • Line speeds of up to 119 ft/min (36M/min) - Four Line Print
  • Line speeds of up to 114 ft/min (35M/min) - Five Line Print
  • 10,000-hour ink filter life
  • Durable IP55 rated stainless steel enclosure.

Find Out More







N32-1-removebg-preview

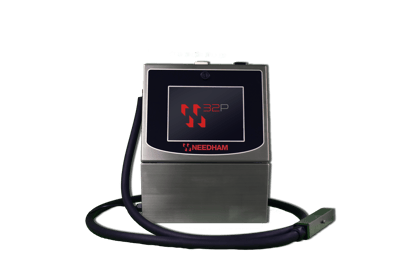

N32P

The N32P is a heavy pigment ink industrial printer, specifically tailored to operate with a range of heavy pigment inks with various colours and specifications.

The N32P enables dark surfaces to be printed with bright, high contrast yellow and white inks; Pigmented systems are commonly used in the following sectors:

  • Automotive
  • Cable and Wire
  • Electronics
  • Extrusion

Unique micro-pigment formulation and ink circulation system provide uniform colourant dispersion without complex fluid or stirring mechanisms.

Find Out More







N32P-removebg-preview



N32HS

The N32HS prints fast, high quality single and twin line codes, barcodes and graphics on the highest speed bottling, canning, wire/cable production lines. A complete range of specialized inks for glass bottles, returnable bottles, wet glass bottle coding, plastics, metal, thermo-sensitive colour change inks and more. Ink dries in a second and can be permanent or removable with caustic solutions or water as required.

  • Print text, barcodes and graphics over 1 or 2 lines.
  • Print height of 1.5mm – 19mm
  • Ink throw distances from .5" (12 mm) up to 1" (25 mm)
  • Line speeds of up to 2,000 ft/min (600 M/min).  - One-Line Print
  • Line speeds of up to 500 ft/min (150M/min) - Two Line Print
  • Durable IP55 rated stainless steel enclosure.

Find Out More







N32HS-removebg-preview

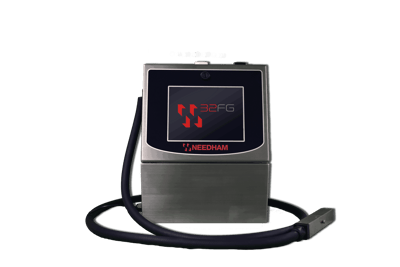

N32FG

Our own N-SERIES Continuous Inkjet printer range is available in a variety of configurations. The N32FG is our Food Grade CIJ Printer, with similar specs as the standard N32 model, but specifically designed for printing with food-grade inks.

N-SERIES Food Grade industrial inkjet printers are compatible with FDA, EU and other compliant inks and are capable of printing directly onto food products, ideal for egg coding, fruit & vegetables or permeable food packaging. Complimented by a diverse range of Food Grade Inks, including self disinfecting ink formulations to enable food products to be printed directly with fast drying, edible red or blue ink. The red ink is specially formulated for use in egg processing facilities. Suitable applications include:

  • Egg packers and producers
  • Food processing and packaging
  • Confectionery
  • Bakery products
  • Cheese
  • Fruits
  • Vegetables and more..

Please get in touch with us today to find out more about our Food Grade printers.

Find Out More







N32FG-removebg-preview



N32UV

Many of the N-SERIES range are compatible with our UV Security specification inks, to meet the demand for hidden security and tracing applications.

Needham Inks Security systems use specially developed UV ink meaning that printed codes are invisible and only visible when exposed to ultra-violet light. The clear, UV readable and fast-drying ink offers excellent adhesion on most surfaces is alcohol resistant and steam sterilisable, ideal for applications in the following industries:


Find Out More





N32HS-removebg-preview

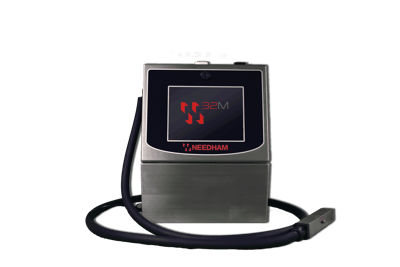

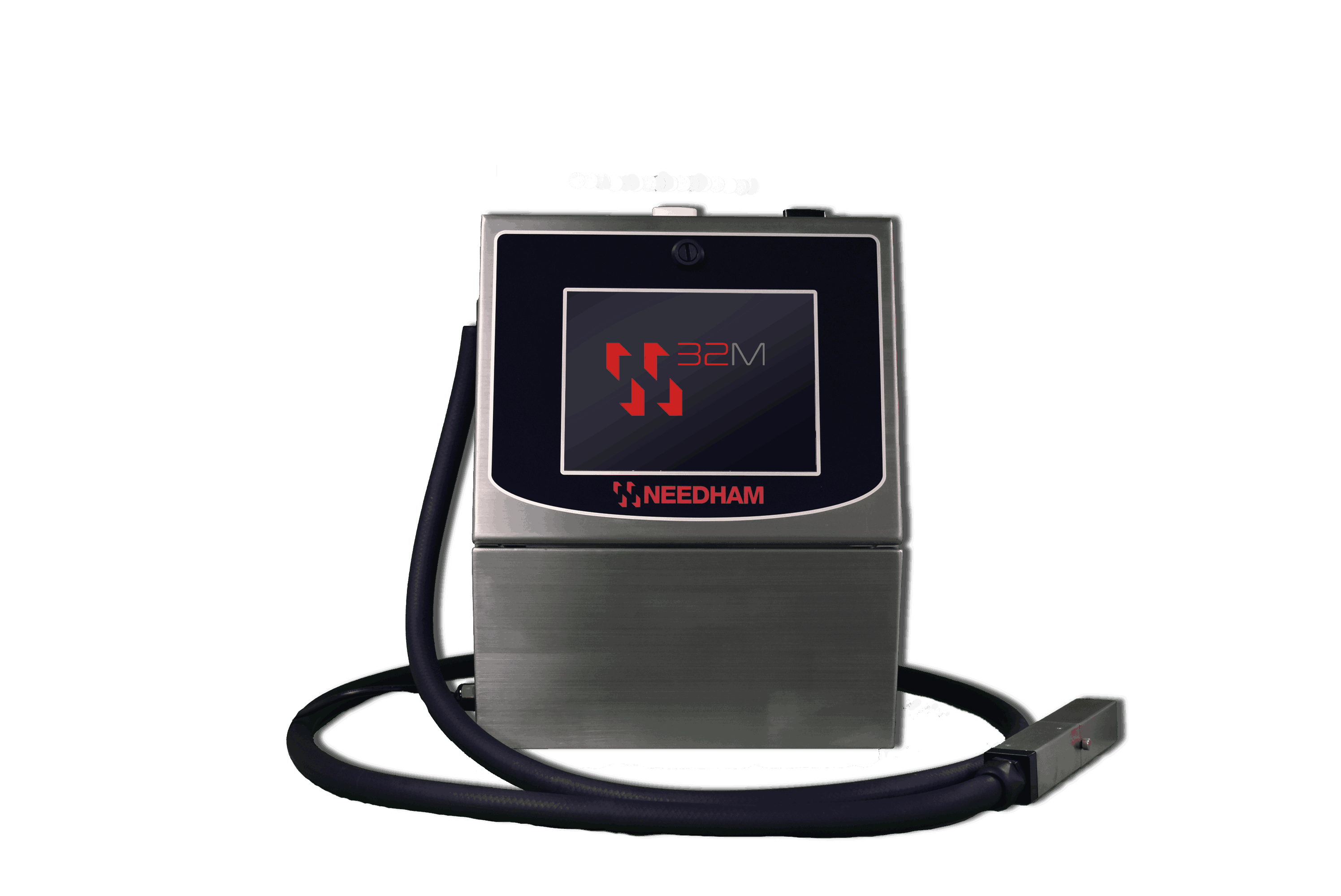

N32M

Sharing the same great features as the N32 CIJ Printer, the N32M  is a small character CIJ printer, which allows you to mark and code from as little as 0.6mm and up to 10mm image heights, making it ideal for small product coding.

The N32M can support printing speeds of up to 400 M/minute accurately and reliably, furthermore it’s housed in an IP 65 rated enclosure perfect for wash-down and more demanding environments. The colour touch interface makes programming and selecting coding runs a breeze, whilst the wide range of features such as SmartFill means you minimise downtime and limit any waste.

  • Print text, barcodes and graphics over 1,2, 3, 4 or 5 lines.
  • Ink throw distances from .4" (10 mm)
  • Line speeds of up to 1,800 ft/min (550 M/min).  - One-Line Print
  • Line speeds of up to 475 ft/min (145M/min) - Two Line Print
  • Line speeds of up to 237 ft/min (72M/min) - Three Line Print
  • Line speeds of up to 164 ft/min (50M/min) - Four Line Print
  • Line speeds of up to 156 ft/min (47M/min) - Five Line Print
  • 10,000-hour ink filter life
  • Durable IP55 rated stainless steel enclosure.

Find Out More







N32M-removebg-preview
