CM600 Thermal Inkjet Printer
High Performance Coding with Smart Touchscreen Control.
The CM600 Thermal Inkjet Printer is a compact, high-resolution industrial coding system designed for precision, speed, and flexibility. Manufactured by Cyklop Needham, this advanced TIJ printer features a 7" intuitive touchscreen, smart cartridge technology, and multiple connectivity options for seamless integration into modern production lines. Ideal for packaging, pharmaceuticals, food & beverage, and general manufacturing, the CM600 delivers sharp, consistent prints with minimal maintenance and maximum uptime.
Key Features of the CM600 TIJ Printer
-

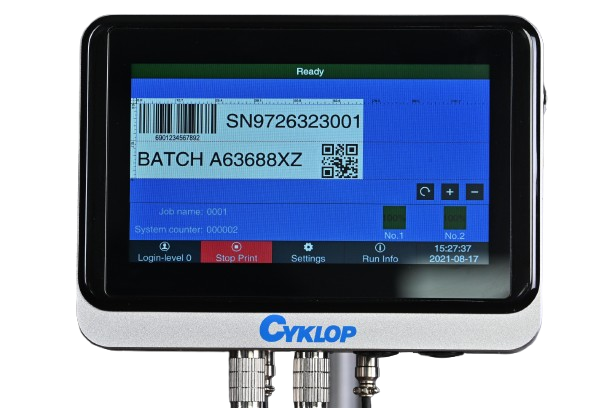

7" Full Colour Touchscreen with intuitive “less is more” UI
-

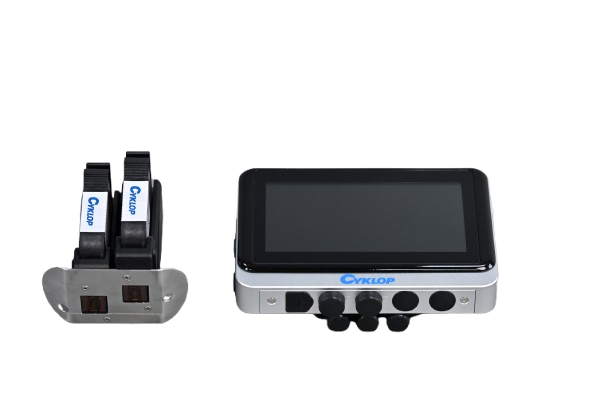

One or Two Printheads for flexible layout coverage
-
Automatic Cartridge Management to ensure clean, sharp prints
-
Smart Printhead Adjustments for precision angle control
-
Fiber Optic Product Sensor and anti-shock mounting bracket
-
Remote Printing Capabilities via Ethernet, USB & RS232
-
IP54 Rated Controller – dust and splash resistant
Print Capabilities
-
Resolution: 150, 200, 300, 600 DPI (Selectable)
-
Print Height: Up to 12.7mm per head / 25.4mm with dual heads
-
Print Length: Up to 3000mm
-
Print Distance: Optimal at 1mm; max 5mm
-
Print Speed: Up to 152 meters/min (DPI dependent)
-
Ink Types: Water- and solvent-based inks (Black, Red, Blue + specialty inks)
-
Content: Date codes, shift codes, logos, external data, barcodes (EAN13, GS1-128, QR, PDF417)
-
Fonts: All common Windows fonts + Dot Matrix
Hardware & Connectivity
-

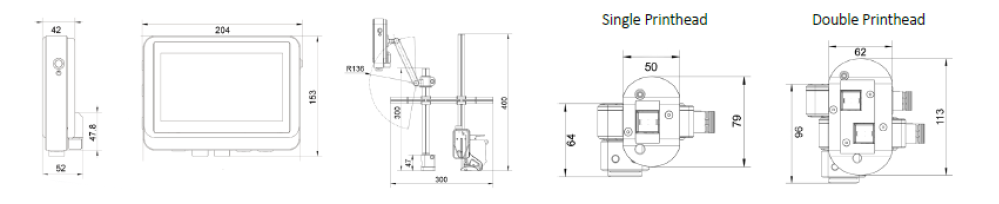

Controller: 7" touchscreen (204 x 153 x 52mm), aluminium housing
-
Printhead Dimensions: 130 x 32 x 93mm, 280g
-
Data Ports: USB 2.0, Ethernet LAN, RS232, alarms output, encoder, sensor
-
Cable Length: Standard 1.5m (Optional 5m)
-
Power Supply: 100–240V AC / 12V DC
-
Mounting: 300mm bar, crossbars, quick-position brackets
Operational Excellence
-
Maintenance: Auto purge, manual purge, print-side selection
-
User Access: 3-level password protection
-
Languages: English, Chinese, Russian, Spanish, Portuguese, Italian + more
-
Temperature Range: 5°C – 45°C (non-condensing)
-
Certifications: CE Certified
-
IP Rating: IP54 (controller)
Applications & Industries
The CM600 is ideal for:
-
Carton coding
-
Batch & date marking
-
Product packaging
-
Pharmaceutical labelling
-
Food & beverage traceability
