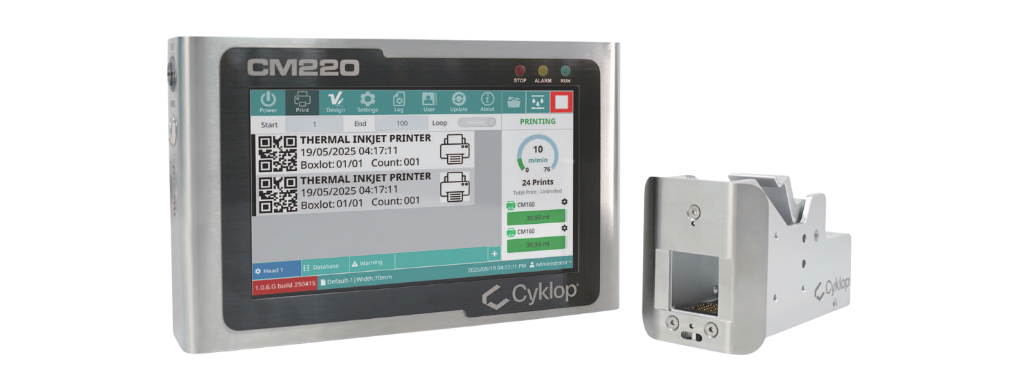

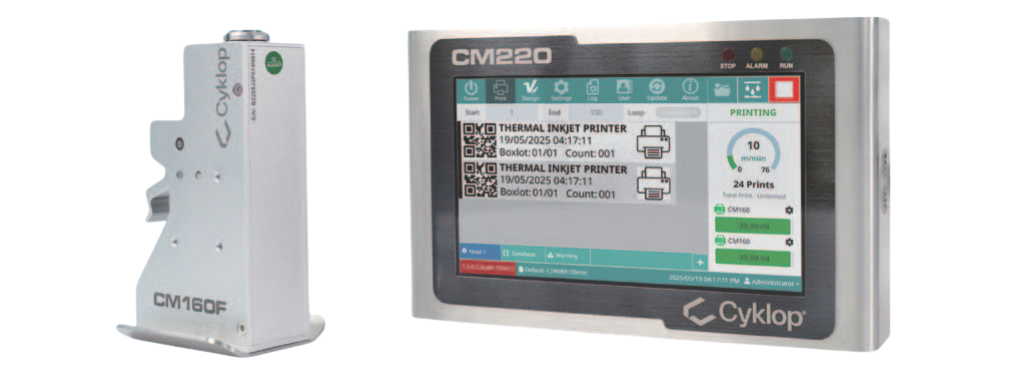

CM220 Thermal Inkjet Controller with CM160F Printheads

Flexible Funai TIJ printing for industrial packaging lines

The CM220 controller paired with CM160F printheads delivers versatile thermal inkjet coding across a wide range of substrates. With throw distances up to 10 mm and speeds up to 45 m/min, the system ensures reliable performance even in demanding environments. The 7-inch touchscreen controller provides simple setup and WYSIWYG message design, making the CM220 + CM160F an adaptable solution for packaging operations.

Untitled design (8)-3

Designed for adaptable performance

Wide throw distance: Up to 10 mm for flexible placement.
Resolution clarity: Up to 300 × 600 dpi for sharp text and barcodes.
Consistent speed: Up to 45 m/min at 300 dpi.

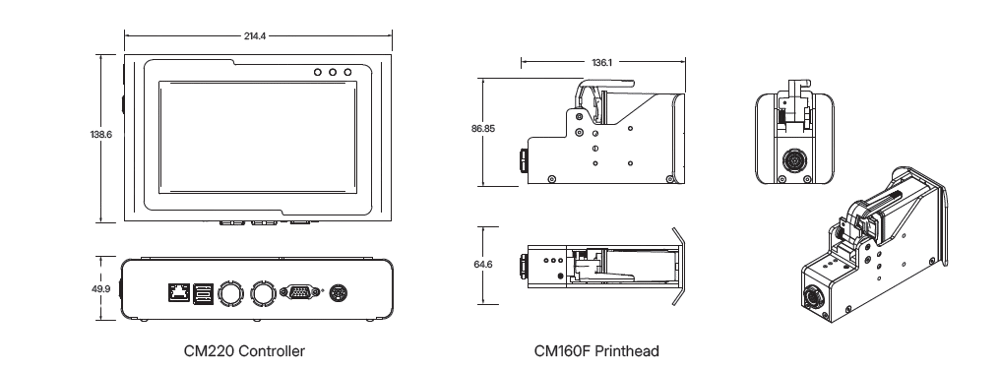

Compact printheads: 136 × 86 × 64 mm for easy integration.
Durable design: Industrial-grade controller and modular system for continuous use.

Untitled design (6)-1

Key Features

Prints text, counters, expiry dates, shift codes, logos, and batch details.
Full barcode capability: 1D & 2D codes including QR, Datamatrix, and GS1.
Windows true font support for professional coding.
Real-time and variable data printing with PLC and device integration via RJ45.
Database connectivity (TXT, CSV) and POD (print online data).
Multi-language system support including English, Chinese, German, Spanish, Korean, and more.
Data upload, backup, and recovery through USB.

Untitled design (11)

Modular System

The CM220 + CM160F features a modular architecture that simplifies maintenance and ensures quick printhead changes. External sensor and encoder support enable integration with production line equipment.

Untitled design (5)-4

Premium Print Quality

Funai TIJ technology delivers crisp, scannable codes at high density, with adjustable optical control for reliable results on porous and non-porous substrates.

Untitled design (10)-1

Applications

The CM220 + CM160F is ideal for industrial environments requiring consistent, high-quality coding on packaging, including food and beverage, pharmaceuticals, electronics, and logistics.

Untitled design (13)

Model	Printing Tech	Max Print Height	Resolution	Speed	Throw Distance
CM220 + CM160	HP TIJ 2.5	25.4mm (2 Heads)	Up to 600 x 600 dpi	76 m/min @ 300 dpi	1 - 5 mm
CM220 + CM160T	1" TIJ	50.8mm (2 Heads)	Up to 300 x 600 dpi	40 m/min @ 300 dpi	1 - 5 mm
CM220 + CM160F	Funai TIJ	26.9mm (2 Heads)	Up to 300 x 600 dpi	45 m/min @ 300 dpi	1 - 10 mm

Why Choose Cyklop Needham?

With over 60 years of expertise, Cyklop Needham is a trusted UK-based manufacturer and distributor of high-performance coding and marking systems. The CM220 represents the latest in thermal inkjet technology – delivering flexibility, reliability, and print clarity for high-speed production environments.
