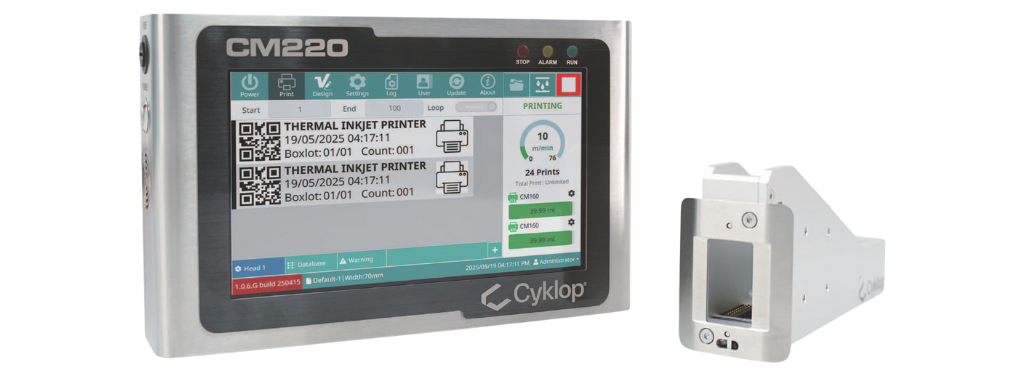

CM220 Thermal Inkjet Controller with CM160T Printheads
High-resolution 1-inch TIJ coding for wide print applications
The CM220 controller with CM160T printheads provides large-area thermal inkjet coding for industrial packaging. With a 50.8 mm maximum print height across two heads, it is designed for high-clarity barcodes, logos, and variable data. The system combines a 7-inch touchscreen controller, simple integration, and reliable output at production speeds up to 40 m/min.
Designed for wide and versatile printing
-
Large print area: Up to 50.8 mm with two CM160T heads.
-
Strong resolution: 300 × 600 dpi for scannable barcodes and graphics.
-
Flexible placement: Throw distance up to 10 mm for text, 5 mm for 2D codes.
-
Fast output: Speeds up to 40 m/min at 300 dpi.
-
Industrial build: Compact, durable printheads matched to a robust controller.
Key Features
-
Supports text, counters, date codes, expiry dates, shift codes, logos, and database printing.
-
1D & 2D barcode support including QR, GS1 Datamatrix, and Code 128.
-
Windows true font support for professional print quality.
-
Real-time and variable data printing, with integration via RJ45 to PLCs, cameras, and checkweighers.
-
Easy WYSIWYG message design on the 7-inch touchscreen controller.
-
Database connectivity (TXT, CSV), POD (print online data).
-
Multi-language support covering European and Asian languages.
-
Data upload, backup, and recovery via USB.
Modular System
The CM220 platform is modular, enabling fast printhead swaps, simple maintenance, and expansion to meet line requirements. The LVDS interface supports external sensors, encoders, and alarm beacons for seamless integration.
Premium Print Quality
With optical density control and a wide throw range, the CM160T achieves reliable printing even where packaging lines demand flexibility. Barcodes remain sharp and fully scannable, while text and logos maintain crisp definition.
Applications
The CM220 with CM160T is suited to larger marking applications such as case coding, logos, batch details, and traceability on secondary packaging in food, beverage, pharmaceutical, and logistics industries.
