CM220 Thermal Inkjet Controller with CM160 Printheads

Flexible, high-resolution coding with modular TIJ printheads

The CM220 controller paired with CM160 series printheads provides an adaptable thermal inkjet solution for industrial coding. Designed for precision, ease of use, and compatibility with diverse production environments, the system delivers sharp text, barcodes, and graphics across multiple substrates. With a 7-inch touchscreen interface and modular printhead options, the CM220 offers seamless integration into automated production lines, ensuring consistent, reliable results.

Untitled design (8)-3

Designed for high-quality, flexible coding

Multiple printhead options: Choose from CM160 (HP TIJ 2.5), CM160T (1" TIJ), or CM160F (Funai TIJ) depending on your application.

Sharp resolution: Up to 600 x 600 dpi for crisp codes and scannable barcodes.

Wide print range: From 25.4 mm with CM160 to 50.8 mm with CM160T, or 26.9 mm with CM160F.

Fast throughput: Print speeds up to 76 m/min (CM160), 40 m/min (CM160T), and 45 m/min (CM160F).

Industrial-grade build: Compact printheads combined with an IP-rated controller, engineered for 24/7 operation.

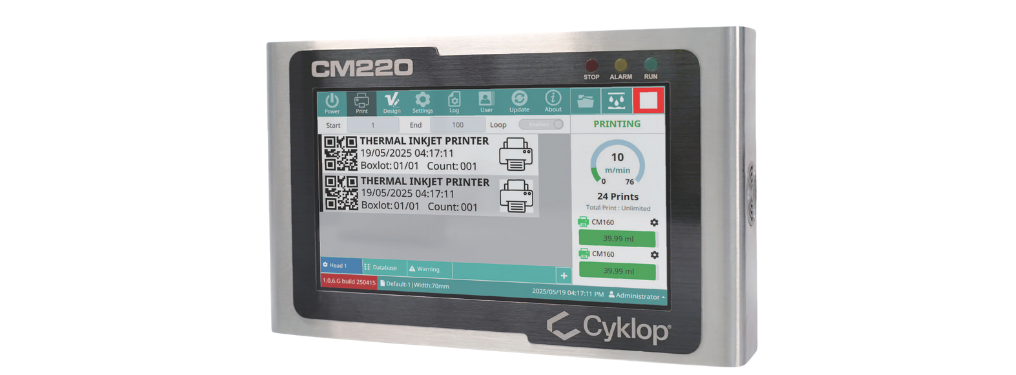

CM220 Controller

Advanced Print Capabilities

Print types: text, counters, dates, expiry, shift codes, images, logos, databases
1D & 2D barcode support including QR, Datamatrix, GS1 standards
Windows true font support for professional typography
Real-time and variable data printing (integration with PLC, camera, checkweigher via RJ45)
WYSIWYG editing on 7" touchscreen controller
Data handling: TXT, CSV databases, POD (print online data)
Multi-language support including English, German, Chinese, Korean, Russian, Turkish, Spanish, and more
Backup & recovery via USB

Untitled design (10)-1

Modular System

The CM220’s modular design allows quick swap of printheads, straightforward maintenance, and future expandability. With LVDS connections and optional external sensors, it integrates smoothly into packaging lines.

Untitled design (11)

Premium Print Quality

By supporting multiple ink types and advanced optical density control, the CM220 ensures crisp codes on porous and non-porous materials. Throw distances of up to 10 mm (CM160F) enable flexible placement even in challenging production setups.

Untitled design (14)

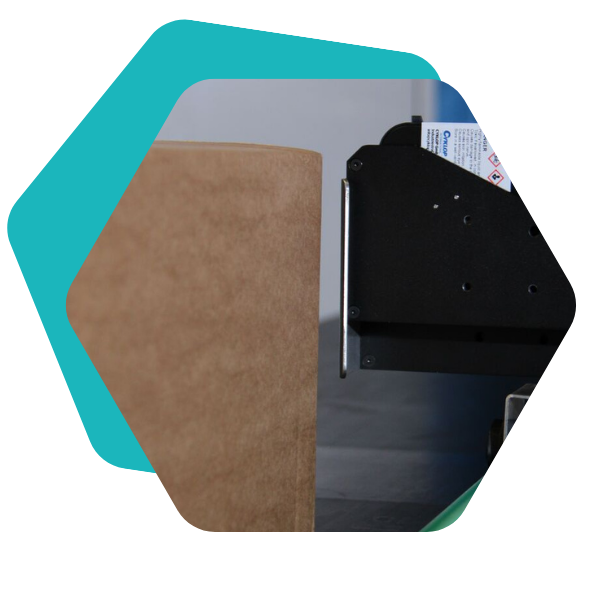

Applications

The CM220 with CM160 printheads is ideal for food and beverage, pharmaceuticals, cosmetics, cable, electronics, and logistics packaging. It prints traceable, high-contrast codes directly on cartons, labels, and secondary packaging.

Untitled design (13)

Model	Printing Tech	Max Print Height	Resolution	Speed	Throw Distance
CM220 + CM160	HP TIJ 2.5	25.4mm (2 Heads)	Up to 600 x 600 dpi	76 m/min @ 300 dpi	1 - 5 mm
CM220 + CM610T	1" TIJ	50.8mm (2 Heads)	Up to 300 x 600 dpi	40 m/min @ 300 dpi	1 - 5 mm
CM220 + CM160F	Funai TIJ	26.9mm (2 Heads)	Up to 300 x 600 dpi	45 m/min @ 300 dpi	1 - 10 mm

Why Choose Cyklop Needham?

With over 60 years of expertise, Cyklop Needham is a trusted UK-based manufacturer and distributor of high-performance coding and marking systems. The CM220 represents the latest in thermal inkjet technology – delivering flexibility, reliability, and print clarity for high-speed production environments.
